C Series Downlight

C Series Module

Features: Brightness Switch or Fixed Output, DMF LightSpeed

Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)

Color Temperature: 3000K, 3500K, 4000K

Beam Spread: General Ambient (90°+)

Dimming: 0-10V (5%)

Ratings: Energy Star, Wet Location, Declare, RoHS Compliant, NSF/ANSI 2

C Series Cylinder

4″ Cylinder

Features: Pendant, Cord or Stem Mount, DMF LightSpeed

Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)

Color Temperature: 3000K, 3500K, 4000K

Trim: Standard

Ratings: Energy Star, Declare Listed, NSF/ANSI 2, UL Listed

M Series Commercial

4” Downlight

Features: Recessed, Adjustable, Wall Wash, Decorative, Warm Dim, Tunable White, Emergency, Integrated Fixture Control

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (27.5W), 3000 lm (34.0W), 3500 lm (40.5W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Square, Hyperbolic, Pinhole, Wall Wash, Flangeless, Decorative, Vandal, Emergency

Ratings: Energy Star, Declare Listed, RoHS Compliant, Wet Location, NSF/ASNI 2 Splash Zone Safe Listed, IP66, IK10, Anti-Microbial

M Series Multiples

4” Multiples

Features: Recessed, Adjustable, Multiple

Lumens: 750 lm (9.5W), 1000 lm (12.5W) per head, Up to 3000lm per Fixture

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Rectangle, Flangeless

Ratings: Energy Star, Title 24 JA8, Declare Listed, Damp Location, NSF/ANSI 2 Splash Zone Safe

M Series Cylinder

4″ Cylinder (Formerly DCC)

Features: Surface Mount, Pendant, Wall Mount, Adjustable, Up/Down, Warm Dim, Emergency

Lumens: 750 lm (10W), 1000 lm (12W), 1250 lm (14W), 1500 lm (20W), 2000 lm (28W), 2500 lm (37W), 3000 lm (40W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Hyperbolic, Snoot, Decorative, Shade

Ratings: Energy Star, Title 24 JA8, Declare, IP65 Wet Location, NSF/ANSI 2 Splash Zone Safe, Dark Sky

X Series Cylinder

3″ Cylinder

Features: Surface Mount, Pendant, Wall Mount, Up/Down, Wall Wash, Warm Dim, Tunable White

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Snoot, Wall Wash (Coming Soon), Decorative (Coming Soon)

Ratings: Energy Star, Title 24 JA8, Wet Location

4" Commercial Adjustable

M Series Commercial Module

Features: Adjustable, Field Changeable Optics, Detachable Driver

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (27.5W), 3000 lm (34.0W), 3500 lm (40.5W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Beam Spread: 15° Narrow Spot, 25° Spot, 40° Flood

Dimming: 0-10V (1%), DALI-2 (0.1%)

Ratings: Damp Location, NSF/ANSI 2 Splash Zone Safe

4" Commercial Downlight

M Series Commercial Module

Features: Field Changeable Optics, Integrated & Detachable Driver Options

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (27.5W), 3000 lm (34.0W), 3500 lm (40.5W)

Color Temperature: 700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Beam Spread: 15° Narrow Spot, 25° Spot, 40° Flood, 60° Wide Flood, 90° General Ambient

Dimming: 0-10V 1%, DALI-2 (0.1%)

Ratings: Wet Location, NSF/ANSI 2 Splash Zone Safe

3" Surface Mount

X Series Cylinder

Features: Surface Mount, Warm Dim, Tunable White

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Snoot, Wall Wash (Coming soon), Decorative (Coming soon)

Ratings: Energy Star, Title 24 JA8, Wet Location



3" Pendant

X Series Cylinder

Features: Pendant, Up/Down, Warm Dim, Tunable White

Size: 6 inch, 9 inch

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Snoot, Wall Wash (Coming soon), Decorative (Coming soon)

Ratings: Energy Star, Title 24 JA8, Wet Location



3" Wall Mount

X Series Cylinder

Features: Wall Mount, Up/Down, Wall Wash, Warm Dim, Tunable White, Emergency

Size: 6 inch, 9 inch

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Snoot, Wall Wash, Decorative

Ratings: Energy Star, Title 24 JA8, Wet Location

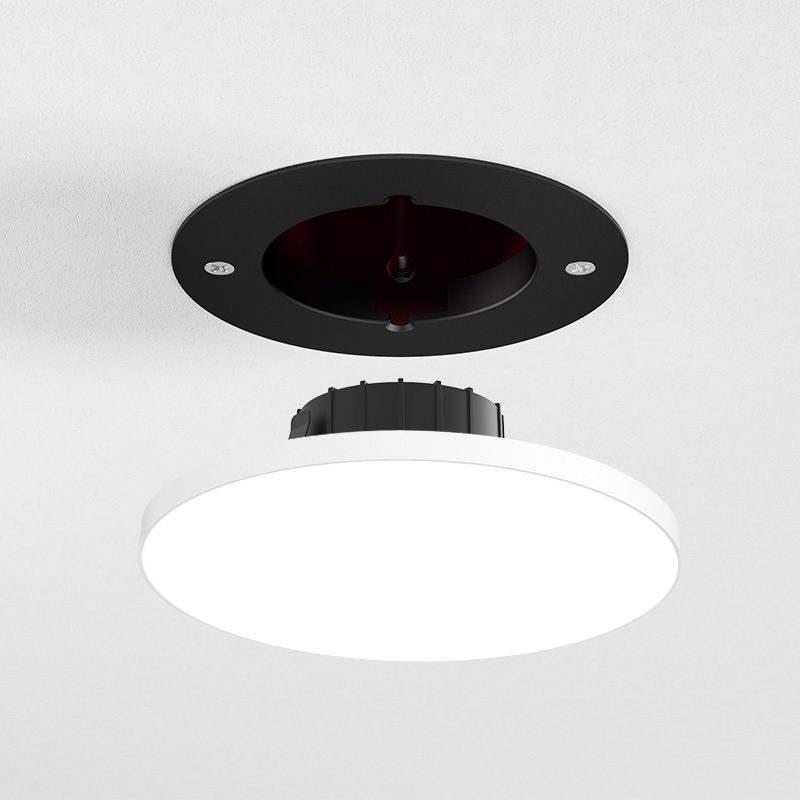

8" Round

S Series Surface Mount

Features: Edgeless Design

Lumens: 1500 lm (17W)

Color Temperature: 2700K, 3000K, 3500K

Beam Spread: Flood

Dimming: 0-10V 1%, TRIAC/ELV 5%

Ratings: Energy Star, Title 24 JA8, Wet Location, IC

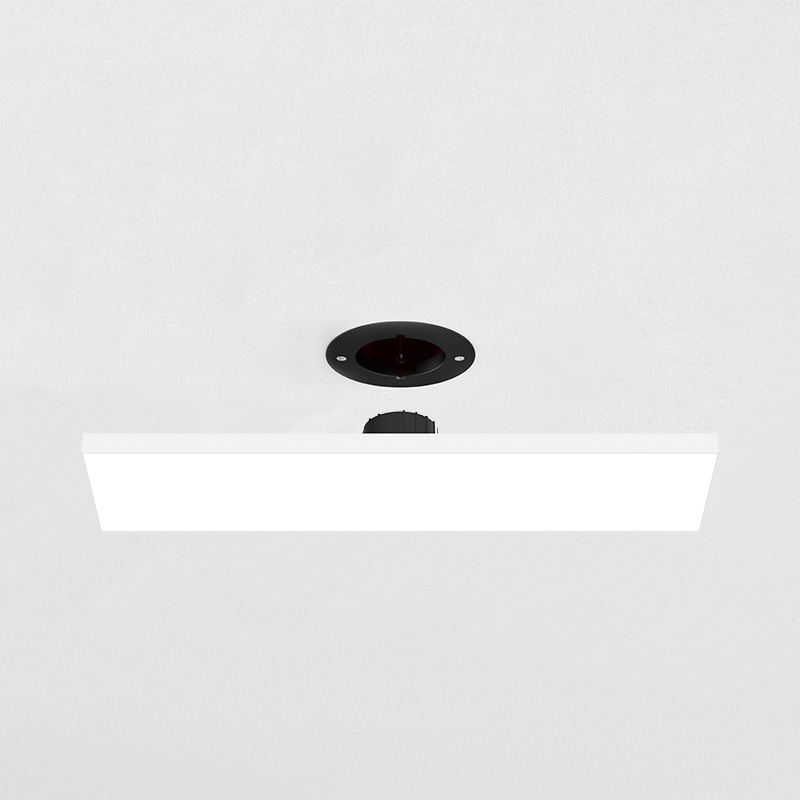

18" Linear

S Series Surface Mount

Features: Edgeless Design

Lumens: 1500 lm (17W)

Color Temperature: 2700K, 3000K, 3500K

Beam Spread: Flood

Dimming: 0-10V 1%, TRIAC/ELV 5%

Ratings: Energy Star, Title 24 JA8, Wet Location, IC

C Series

4″ and 6″ Downlight

Features: Recessed, Non-Conductive Dead Front, DMF LightSpeed

Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)

Color Temperature: 3000K, 3500K, 4000K

Trim: Round

Ratings: Energy Star, Declare Listed, Wet Location, NSF/ANSI 2, UL Listed, RoHS, Non-Conductive Dead Front

M Series

Most Versatile 4" Lighting Solutions

M Series Residential

4” Downlight

Features: Recessed, Adjustable, Wall Wash, Warm Dim, Multiple, Emergency, Decorative

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500​ lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Square, Hyperbolic, Pinhole, Wall Wash, Flangeless, Decorative, Emergency, Non-Conductive Dead Front

Ratings: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Fire Rated, STC/IIC Sound Rated, Chicago Plenum, IC, NSF/ANSI 2 Splash Zone Safe

M Series Commercial

4” Downlight

Features: Recessed, Adjustable, Wall Wash, Decorative, Warm Dim, Tunable White, Emergency, Integrated Fixture Control

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (27.5W), 3000 lm (34.0W), 3500 lm (40.5W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Square, Hyperbolic, Pinhole, Wall Wash, Flangeless, Decorative, Vandal, Emergency

Ratings: Energy Star, Declare Listed, RoHS Compliant, Wet Location, NSF/ASNI 2 Splash Zone Safe Listed, IP66, IK10, Anti-Microbial

M Series Multiples

4” Multiples

Features: Recessed, Adjustable, Multiple

Lumens: 750 lm (9.5W), 1000 lm (12.5W) per head, Up to 3000lm per Fixture

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Rectangle, Flangeless

Ratings: Energy Star, Title 24 JA8, Declare Listed, Damp Location, NSF/ANSI 2 Splash Zone Safe

M Series Cylinder

4″ Cylinder (Formerly DCC)

Features: Surface Mount, Pendant, Wall Mount, Adjustable, Up/Down, Warm Dim, Emergency

Lumens: 750 lm (10W), 1000 lm (12W), 1250 lm (14W), 1500 lm (20W), 2000 lm (28W), 2500 lm (37W), 3000 lm (40W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Hyperbolic, Snoot, Decorative, Shade

Ratings: Energy Star, Title 24 JA8, Declare, IP65 Wet Location, NSF/ANSI 2 Splash Zone Safe, Dark Sky
X Series

High Performance 2" Lighting Solutions

X Series

2” Downlight

Features: Recessed, Adjustable, Wall Wash, Decorative, Warm Dim, Tunable White

Lumens (Downlight):  500 lm (9.5W), 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)

Lumens (Adjustable): 500 lm (12.5W), 750 lm (12.5W), 1000 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Square, Wall Wash, Flangeless, Pinhole, Hyperbolic, Decorative

Rating: Energy Star, Title 24 JA8, Declare Listed, Wet Location, Chicago Plenum, IC, Dark Sky, NSF/ANSI 2

X Series Cylinder

3″ Cylinder

Features: Surface Mount, Pendant, Wall Mount, Up/Down, Wall Wash, Warm Dim, Tunable White

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Snoot, Wall Wash (Coming Soon), Decorative (Coming Soon)

Ratings: Energy Star, Title 24 JA8, Wet Location
H Series

High Value 3" & 4" Lighting Solutions

H Series

3″ and 4″ Downlight

Features: Recessed, Surface Mount, Adjustable, Natural Warm Dim

Lumens: 350 lm (5W), 750 lm (9W), 950 lm (12W)

Color Temperature: Natural Warm Dim 3000K-2200K & 2700K-1800K

Trims: Round, Square, Flush, Adjustable

Ratings: Energy Star, Title 24 JA8, Declare Listed, Wet Location, IC, NSF/ANSI 2

H Series Cylinder

3″ Cylinder

Features: Pendant, Wall Mount, Natural Warm Dim

Lumens: 350 lm (5W), 750 lm (9W), 950 lm (12W)

Color Temperature: Natural Warm Dim 3000K-2200K & 2700K-1800K

Trims: Round Standard / 5.5″ Decorative Trim

Ratings: Energy Star, Title 24 JA8, Declare Listed, IP 65 Wet Location, NSF/ANSI 2
C Series

Quick Shipping, Simple 4" & 6" Lighting Solutions

C Series

4″ and 6″ Downlight

Features: Recessed, Non-Conductive Dead Front, DMF LightSpeed

Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)

Color Temperature: 3000K, 3500K, 4000K

Trim: Round

Ratings: Energy Star, Declare Listed, Wet Location, NSF/ANSI 2, UL Listed, RoHS, Non-Conductive Dead Front

C Series Cylinder

4″ Cylinder

Features: Pendant, Cord or Stem Mount, DMF LightSpeed

Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)

Color Temperature: 3000K, 3500K, 4000K

Trim: Standard

Ratings: Energy Star, Declare Listed, NSF/ANSI 2, UL Listed
Surface

Slim Profile, Junction Box Solutions

S Series

Surface Mount

Features : Surface Mount, Emergency

Lumens : 750 lm (9W), 1000 lm (12W), 1500 lm (17W)

Color Temperature : 2700K, 3000K, 3500K

Trims : 4″ Round, 4″ Square, 8″ Round, 18″ Linear

Ratings : Energy Star, Title 24 JA8, Wet Location, IC, Closet Rated

A Series

Illuminated Signage

Features: Surface Mount

Lumens: 50 lm (3W)

Color Temperature: 2700K, 3000K

Ratings: Energy Star, Title 24, Damp Listed, ADA Compliant
